EX2202
Cân phân tích kỹ thuật EX2202 do hãng OHAUS sản xuất ủy quyền cho CÔNG TY CỔ PHẦN CÂN ĐIỆN TỬ THỊNH PHÁT có địa chỉ trụ sở chính tại số 57 Đường Nguyễn Văn Thương, Phường 25, Quận Bình Thạnh, TP.Hồ Chí Minh nhập khẩu và phân phối, quí khách có nhu cầu xin liên hệ điện thoại (028) 62.888.666 di dộng có zalo 0915.999.111 hoặc 0908.444.000 website www.ohausvietnam.com
|
Model
|
Cân kỹ thuật EX2202
|
|
Mức cân
|
2200 g
|
|
Độ đọc
|
0.01 g
|
|
Kích thước đĩa
|
(190 x 200) mm
|
|
Kích thước cân
|
(393 x 98 x 230) mm.
|
|
Hiển thị
|
Màn hình cảm ứng màu (Full-color VGA, touch screen)
|
|
Giao tiếp
|
RS232 và USB
|
|
Nhập khẩu
|
Thư ủy quyền nhập khẩu và phân phối |
|
Nguồn
|
220-240VAC kèm sạc Adapter 12v/1A |
|
Sản xuất
|
OHAUS USA
|
Giá:
Liên hệ
Thông tin chi tiết

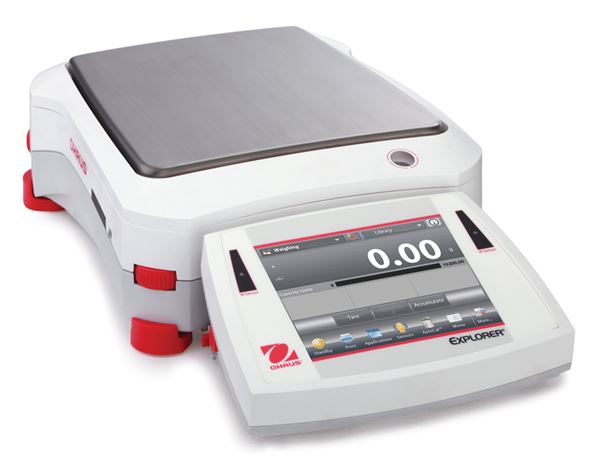

EXPLORER™ PRECISION
Flagship Balances from OHAUS EX2202
OVERVIEW
The OHAUS Explorer Series of precision balances combine modern features and design elements to offer unmatched functionality in a line of high-performance balances unlike any other on the market. These smart and intuitive balances simplify even the most complex laboratory measurements.
Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC, Statistics.
Display
5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness
Operation
AC adapter (included)
Communication
RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.
Construction
Metal base, ABS top housing, stainless steel pan, glass draftshield with top mounted side doors & flip/sliding top door (1mg models), illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, 4 touchless sensors, in-use cover
Design Features
Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating languages.
SPECIFICATIONS
|
Model
|
EX2202
|
|
Maximum Capacity
|
2200 g
|
|
Readability
|
0.01 g
|
|
Pan Size
|
7.5 in x 8 in (190 mm x 200 mm)
|
|
Internal Calibration
|
AutoCal™ - Automatic
|
|
Draftshield
|
--------------
|
|
Auto Door
|
Not applicable
|
|
Auxiliary Display Model
|
Available as an Accessory |
|
Battery Life
|
Not applicable |
|
Built-in Ionizer
|
No |
|
Communication
|
thernet (Available as an Accessory); USB (Included); RS232 (Included) TPS VIET NAM OEM
|
|
Dimensions
|
15.5 in x 3.9 in x 9.1 in (393 mm x 98 mm x 230 mm) (LxHxW) |
|
Display
|
Full-color 5.7 in VGA, touch screen |
|
In-Use Cover
|
Included |
|
Legal for Trade
|
Not applicable |
|
Linearity ±
|
0.02 g |
|
Minimum Weight
|
(USP, 0.1%, typical) 16 g
|
|
Net Weight
|
9.5 lb (4.3 kg) |
|
Pan Construction
|
Stainless Steel |
|
Power
|
AC Adapter (Included) |
|
Repeatability, typical
|
0.01 g |
|
Stabilization Time
|
1 s |
|
Tare Range
|
To capacity by subtraction |
|
Units of Measurement
|
Ounce Troy; Pennyweight; Momme; Gram; Kilogram; Grain; Tola; Tical; Mesghal; Carat; Ounce; Custom |
|
Working Environment
|
50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing) |
